Exhaust Removal Systems from Eurovent

At Total-Tool, we provide comprehensive solutions for exhaust removal systems, offering sales, installation, and maintenance services. Our partnership with Eurovent allows us to deliver advanced, flexible exhaust removal equipment, including overhead rail systems, motorized hose reels, telescoping drops, and portable exhaust systems. These solutions are designed to efficiently remove harmful exhaust fumes across automotive, heavy-duty, and specialized service facilities. Whether you’re outfitting a single service bay or an entire workshop, we ensure that your exhaust systems are optimized for safety and performance, keeping your operations running efficiently and safely with our expert maintenance services.

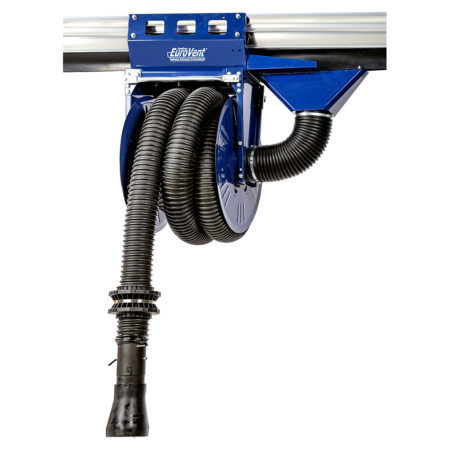

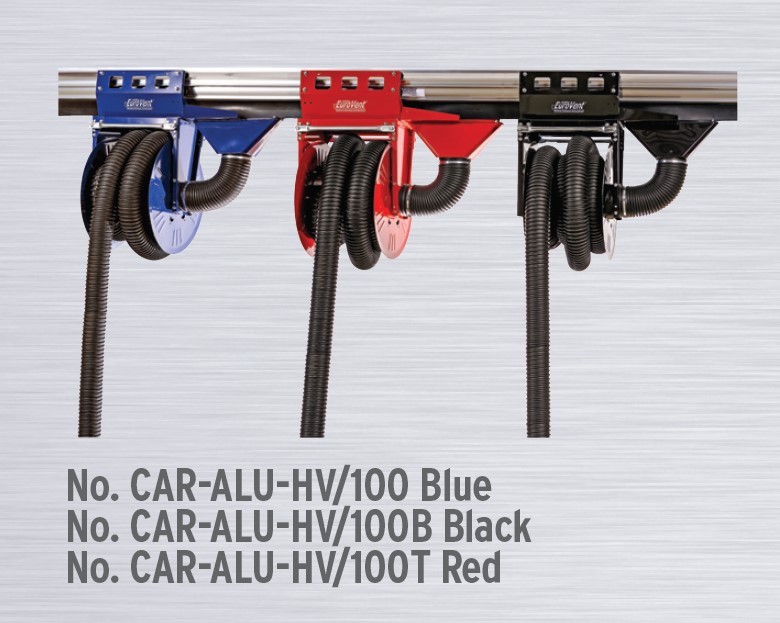

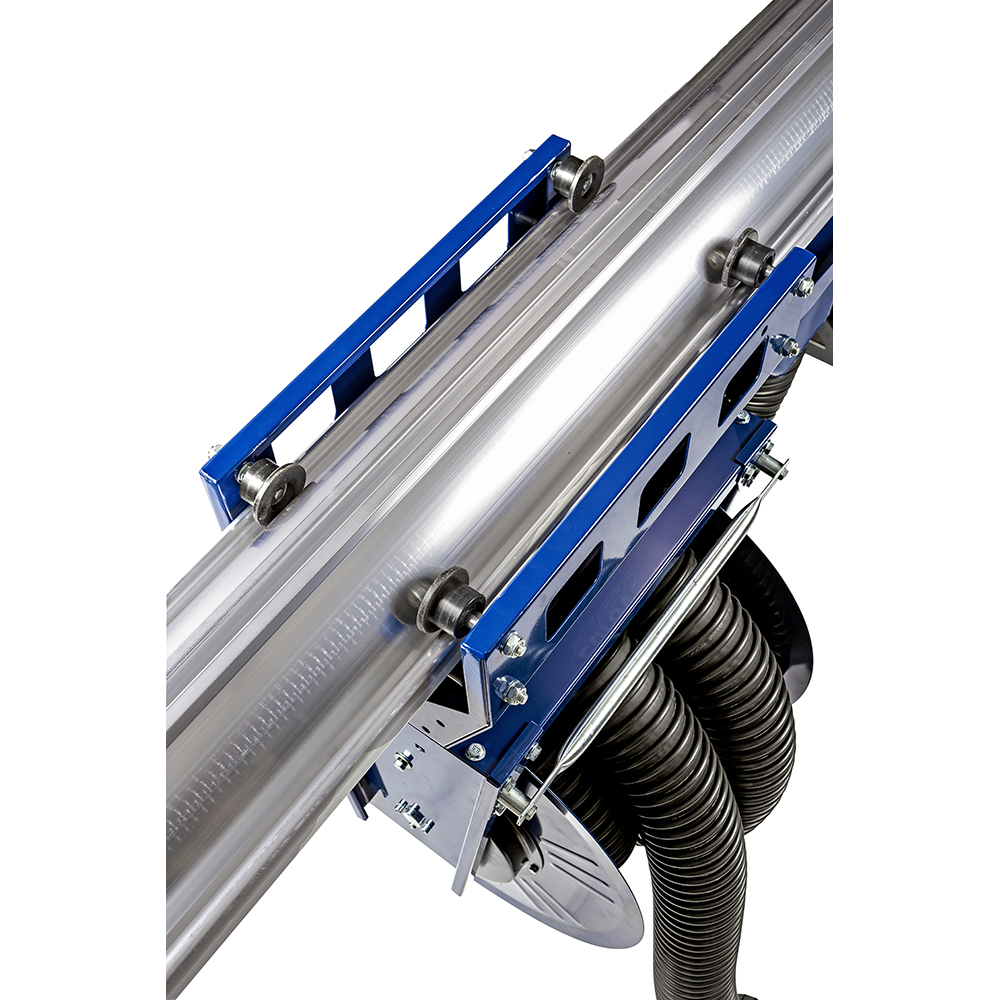

You no longer need an exhaust drop at every service bay. With a EuroVent Overhead Rail Exhaust System you can easily move sliding hose reels and telescoping drops along the aluminum rail from service bay to service bay. The four wheels on top of the sliding crab carry the load while the bottom wheels serve as a guide.

• The popular choice for most overhead exhaust systems
• Retractable reel keeps hose up and out of the way when not in use
• Provides high-volume air flow
• 25’ of reinforced fabric and crush-resistant 4” exhaust hose
• 4” hose receiver with damper to accept EuroVent QuickLink tailpipe adapters
• Includes hose stop and pull chain with handle
• Available colors: black, blue, red

• For use in repair facilities servicing heavy-duty diesel vehicles
• High-volume air flow
• 25’ of fabric-reinforced, high-temperature 6” diameter exhaust hose
• Includes hose stop and pull chain with handle
• Available colors: black, blue

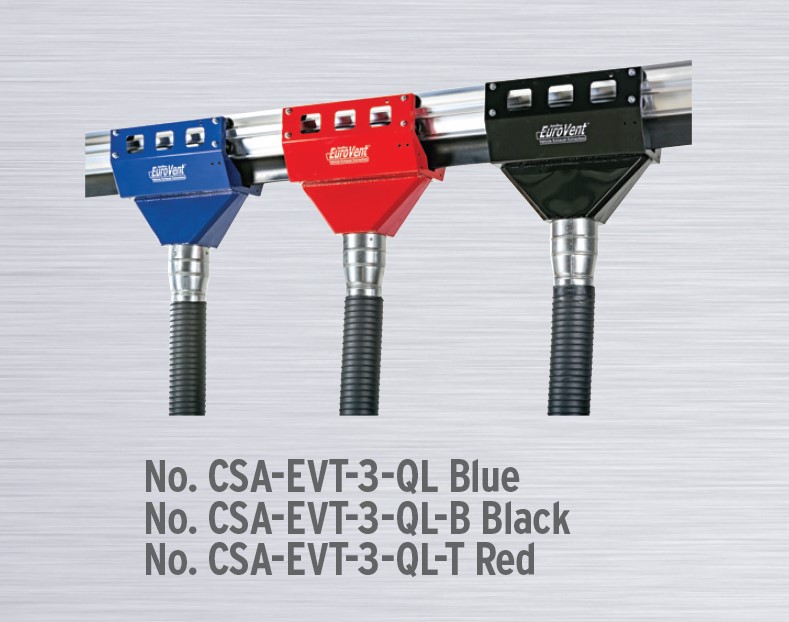

• EuroVent Telescoping Hose combined with the flexibility of the sliding crab design
• Three-piece telescoping exhaust hose retracts when not in use
• Extends to 18’ 7”, retracts to 8’ 2”
• Innovative break-away design prevents damage if someone accidentally pulls hose off the sliding crab
• Comes standard with 4” x 6” rubber QuickLink tailpipe adapter
• Includes pull chain with handle
• Available colors: black, blue, red

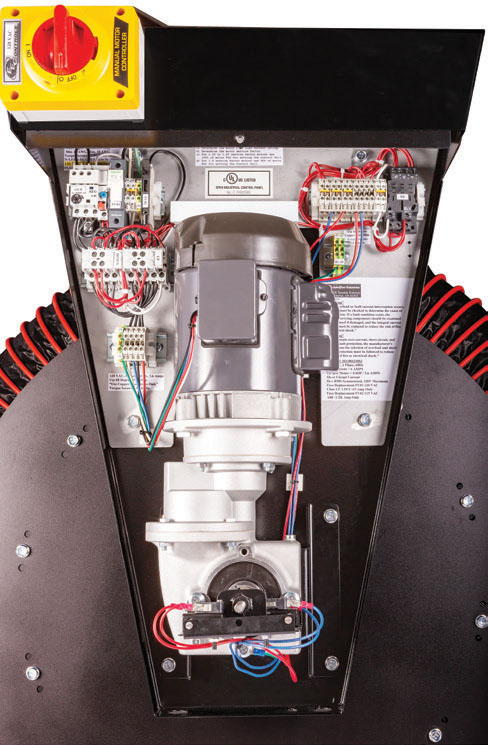

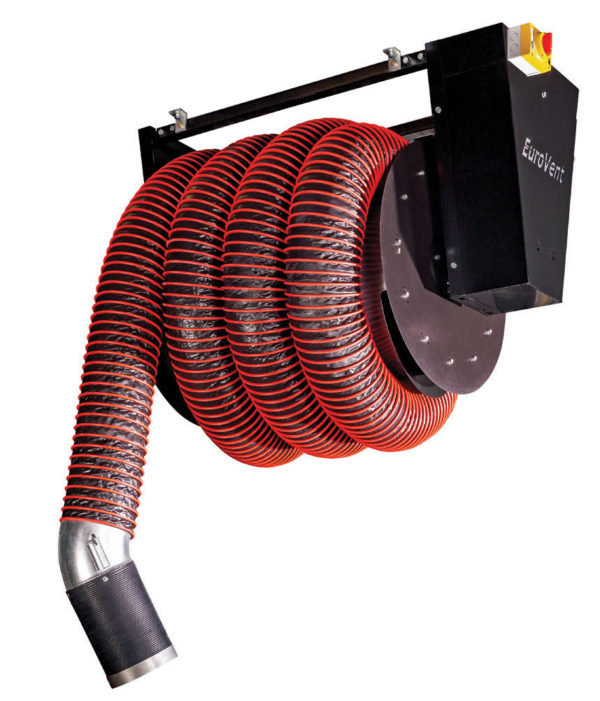

EuroVent Heavy-Duty Motorized Hose Reels are designed for exhaust fume extraction in professional heavy duty repair facilities. This is a fixed motorized overhead hose reel. A properly designed and installed exhaust extraction system will reduce energy consumption and air loss while guaranteeing the removal of harmful exhaust fumes for larger commercial

These customized exhaust extraction systems have been developed for:

• Diesel trucks
• Military vehicles
• Heavy equipment
• Aircraft ventilation
• Marine applications
• Municipal vehicles

Features:

• 36” drum holds 35’ of 8” hose
• Available with 600° up to 1,500° temperature rated hose
• Optional drum widths 36” and 60” depending on facility requirements
• UL508a certified industrial control panel
• Series of reels may be connected with duct work to a central exhaust fan or supplied as a stand alone unit with a direct mount fan
• Industrial powder coated reel in frame

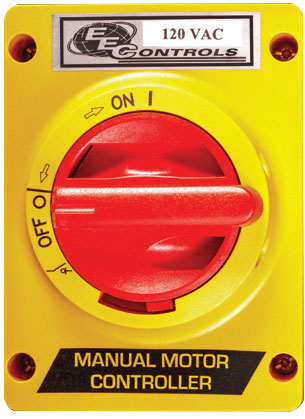

• Includes a side-mounted electric disconnect switch to cut power for reel servicing

Options:

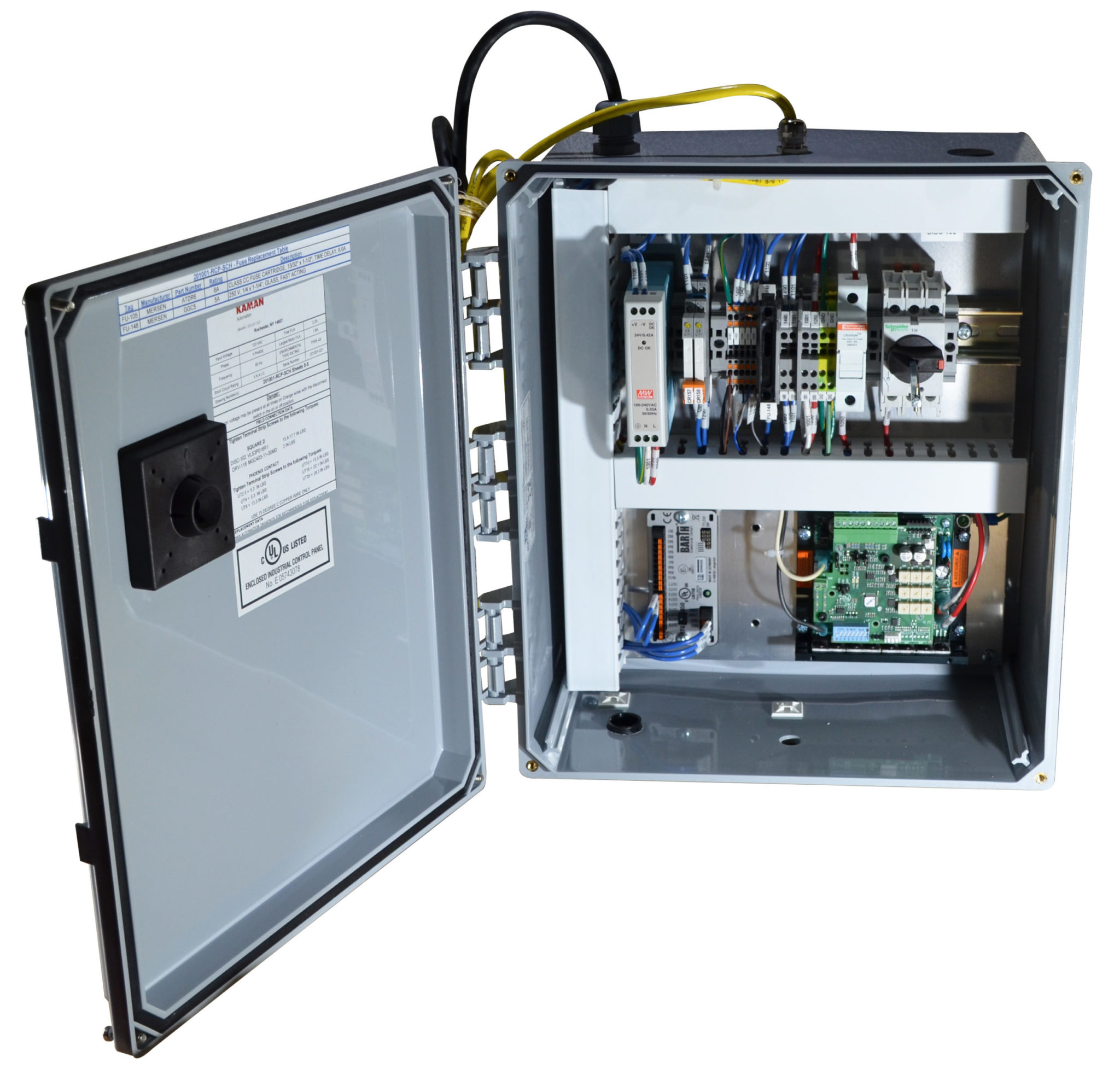

• Wall mount control panel

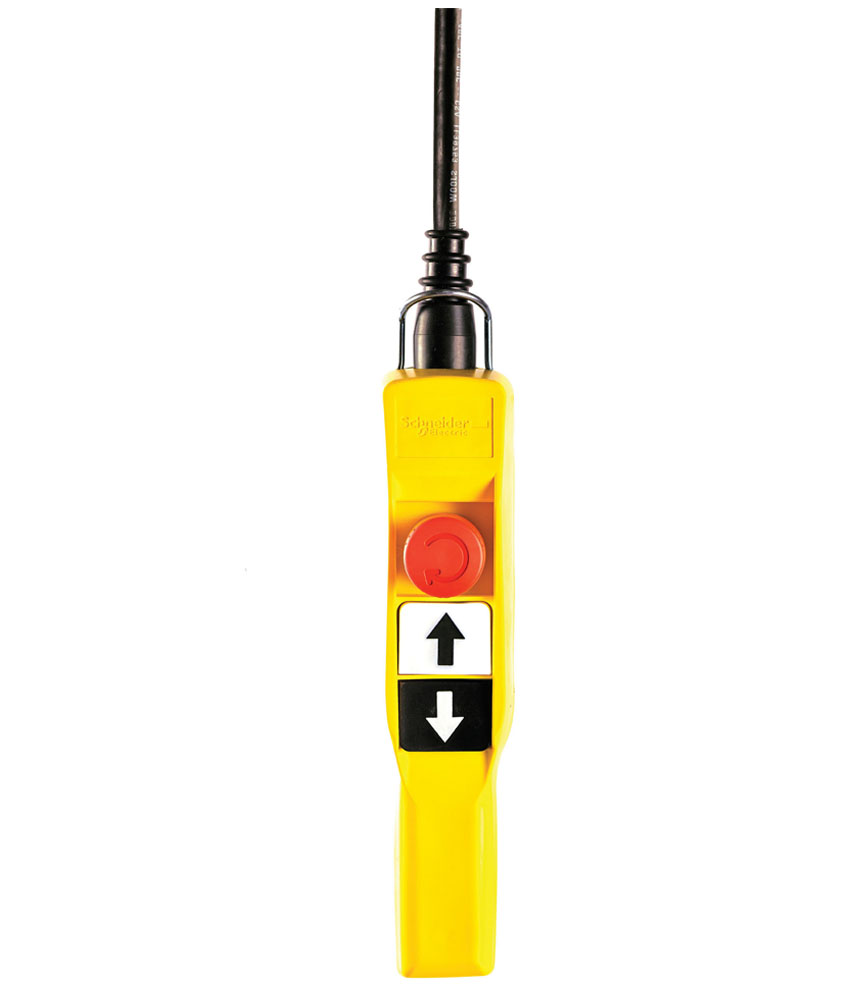

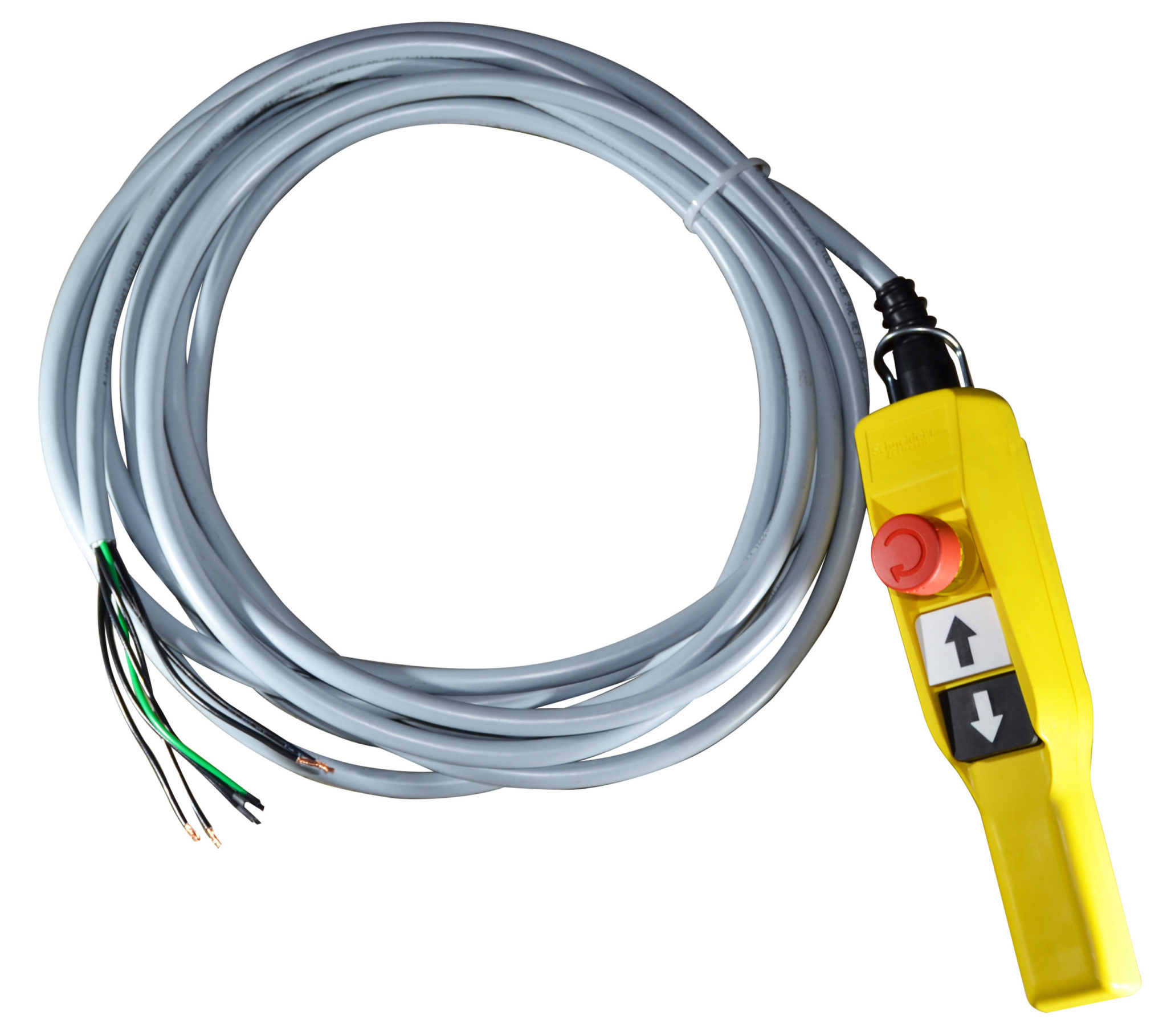

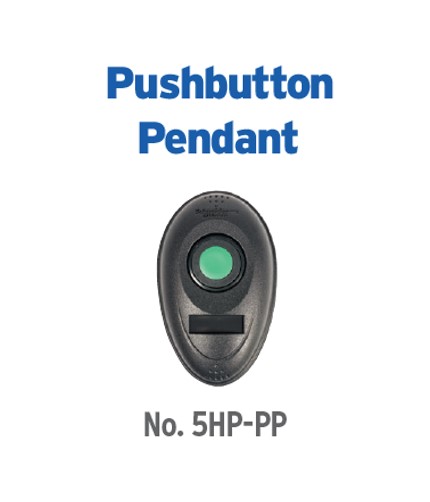

• Pendant style control unit also available

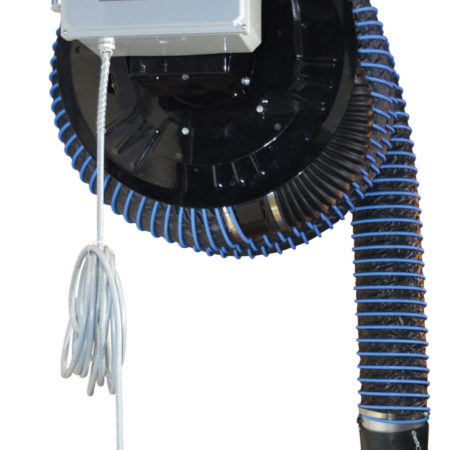

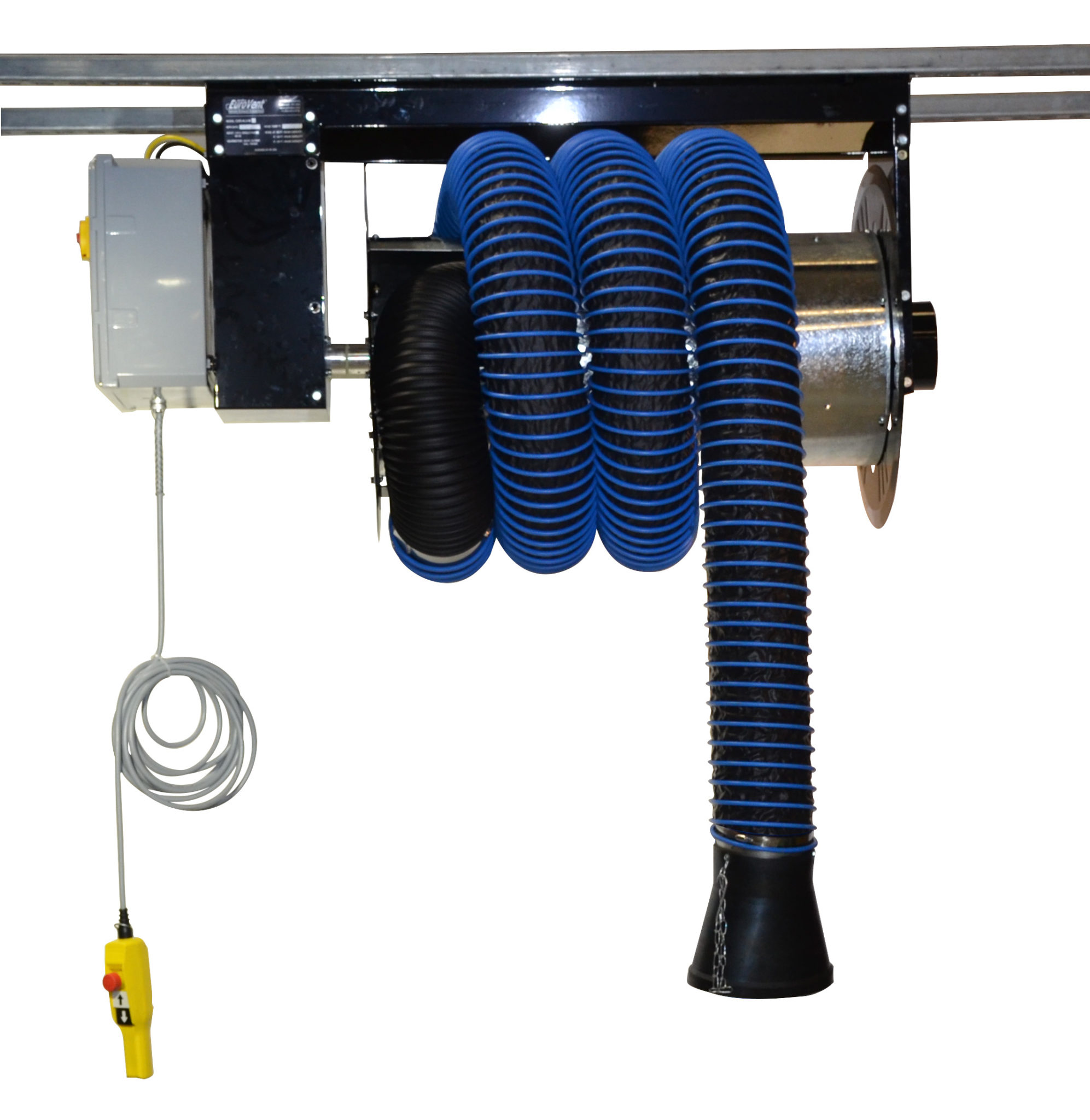

EuroVent’s Motorized Fixed Hose Reel Systems removes harmful exhaust fumes from lightweight to large, commercial-grade vehicles with an easy-to-use, motorized descending and ascending hose reel. We design these reels to fit your facility with connection options from ductwork to a central exhaust fan or install as a standalone unit with a direct mount fan.

These customized exhaust extraction systems have been developed for:

• Diesel trucks
• Military vehicles
• Heavy equipment
• Aircraft ventilation
• Professional Service Lanes
• Marine applications
• Municipal vehicles

Features:

• 32.5” drum holds 35’ of 4″, 5″ or 6” hose
• Available with 600° up to 1,500° temperature rated hose

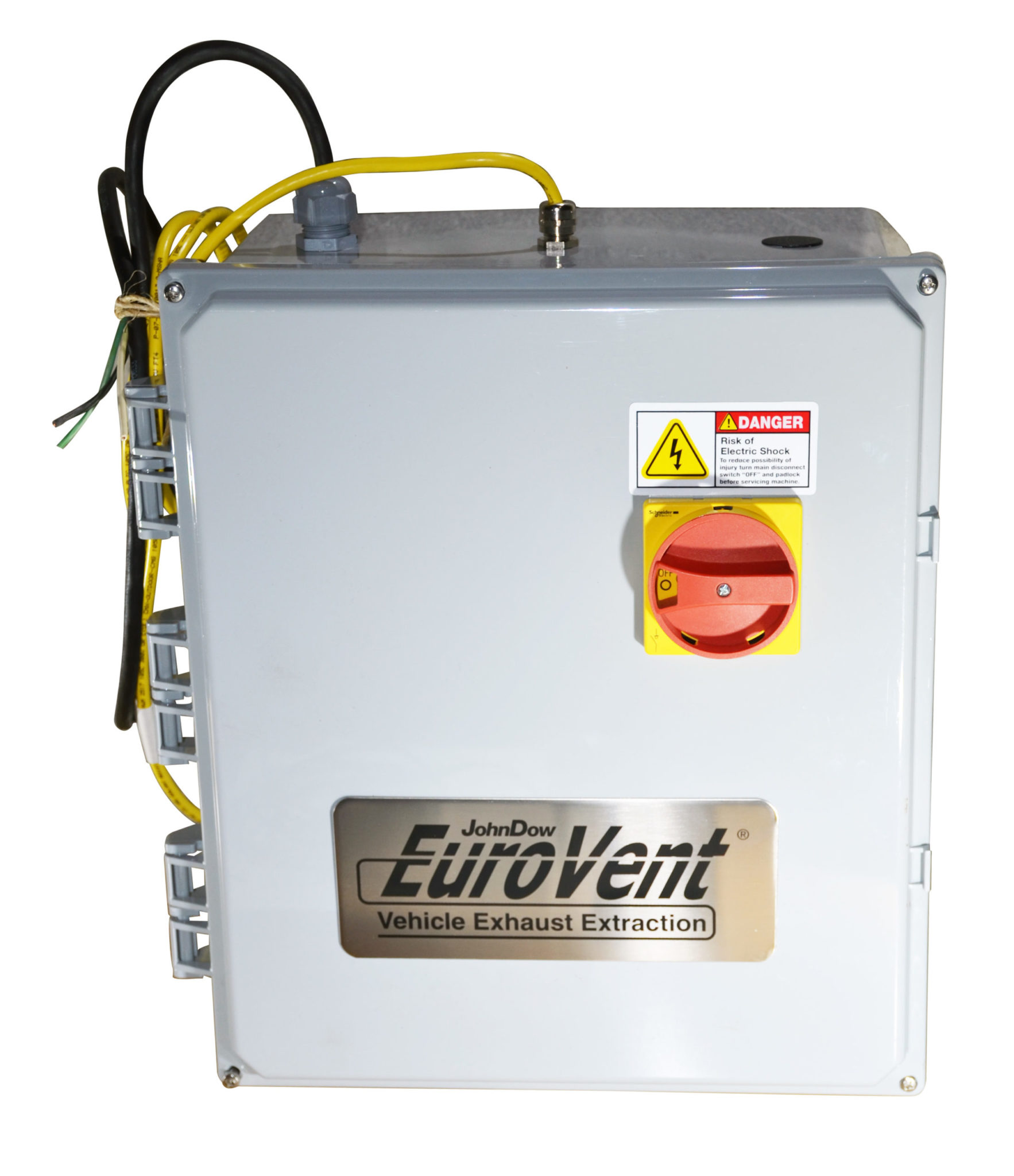

• UL508a certified industrial control panel
• Series of reels may be connected with duct work to a central exhaust fan or supplied as a stand alone unit with a direct mount fan
• Industrial powder coated reel in frame
• Includes a side-mounted electric disconnect switch to cut power for reel servicing
• Loss of Power will not impact pre-set hose drop length
• Permanently lubricated motor

Options:

• Wall mount control panel
• Pendant style control unit also available

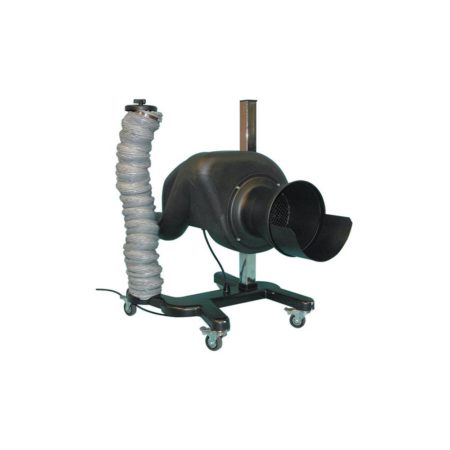

Remove vehicle exhaust fumes from garage service areas with this practical and affordable Portable Exhaust Extraction System. This portable extractor captures fumes from the vehicle and discharges them safely up to 30 feet away, keeping your staff safe from harmful fumes. Easily move the portable exhaust extraction system around the shop where you need it to be.

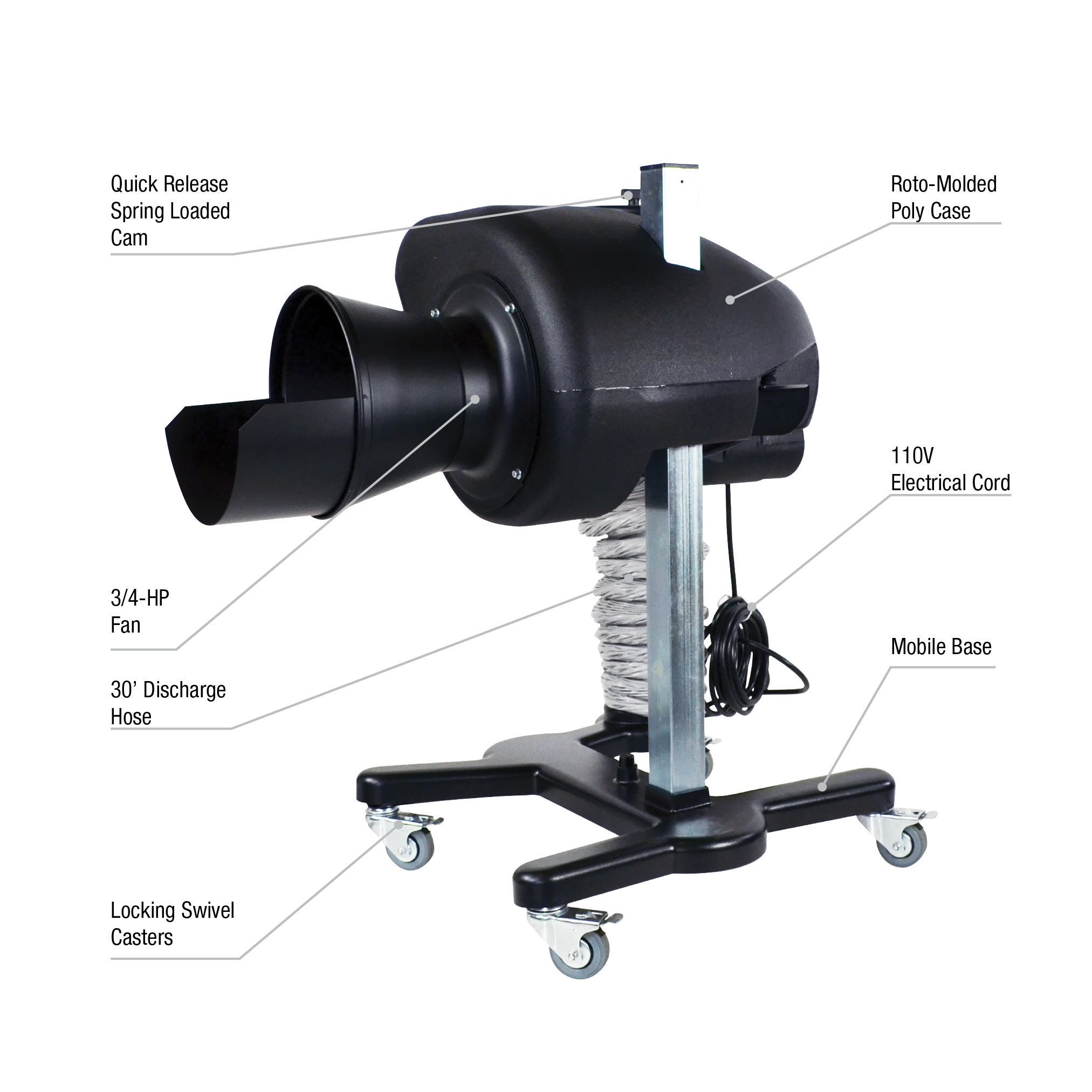

Features include:

• 3/4-HP fan produces 330 cfm air flow
• Fan mounted in tough, roto-molded polyethylene “flow-through” case
• Mobile base makes the EV-5100 easy to position behind a vehicle
• Control height position with the quick-release, spring loaded cam
• The discharge hose stores neatly when not in use
• Handles fume temperatures up to 300°F
• Optional Y hose adapter available for dual-exhaust vehicles

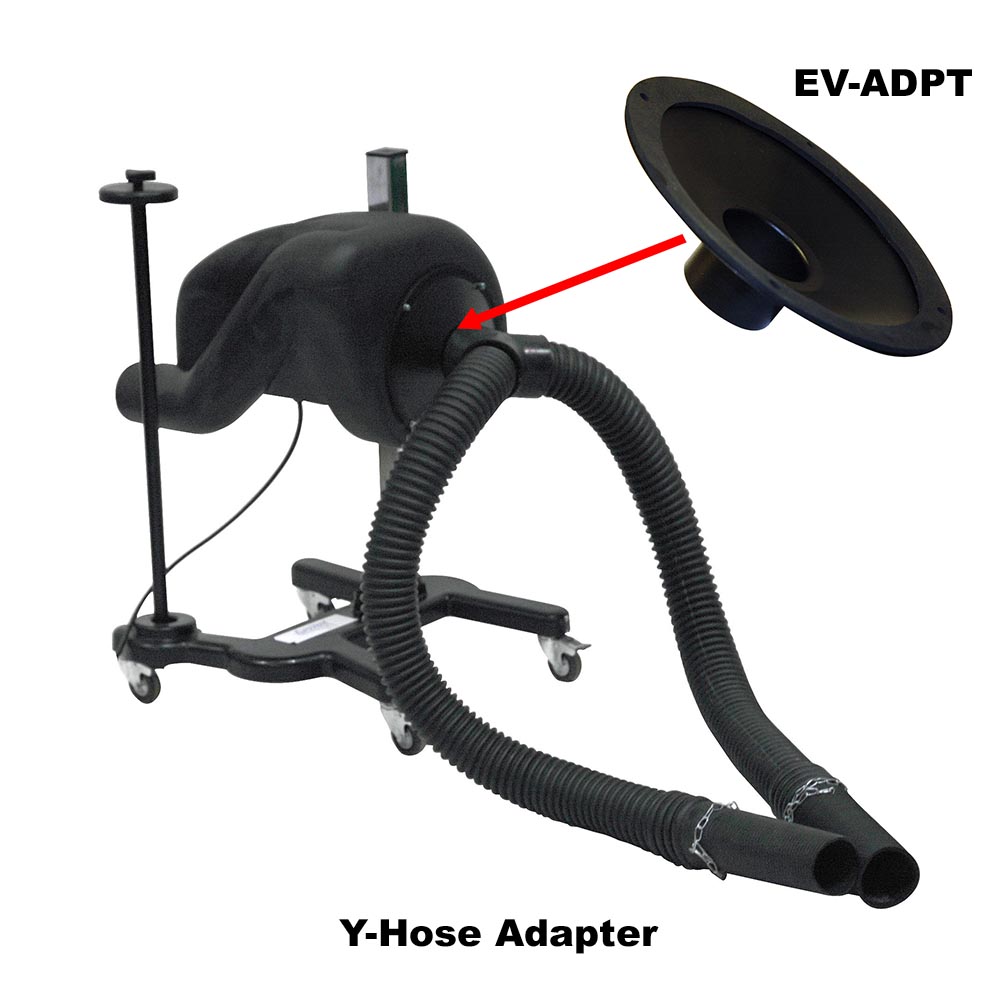

Converts EV-5100 for use with dual-exhaust vehicles and motorcycles

• Works with standard 3” exhaust hoses and Y hose adapters
• Does not include hose or tailpipe adapters
• Weight: 2 lbs.

Y hose and adapters sold separately.

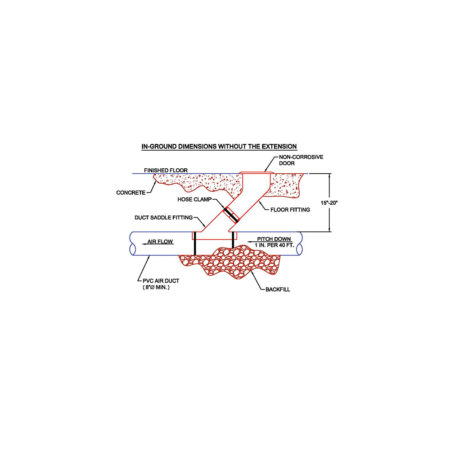

If a concealed underground exhaust system is a better option for your service bay operation, the EuroVent In-Ground Exhaust System provides an efficient set up with the same functionality as an Overhead System. This system is ideal for passenger vehicles, and light- and medium-duty trucks.

Each system includes:

• Cast aluminum door assembly

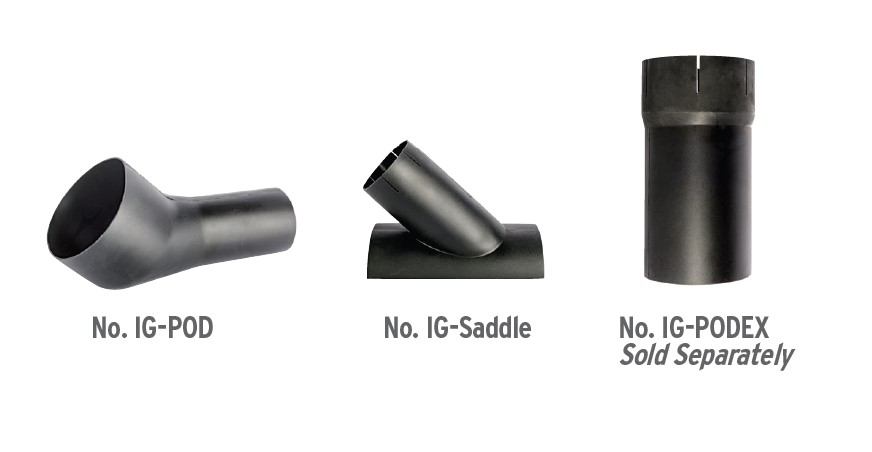

• Roto-molded plastic 45° degree pod
• Roto-molded plastic pipe saddle

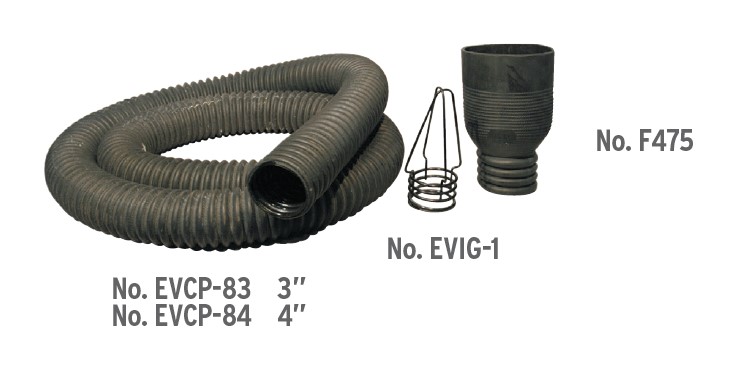

• 8’ Crushproof hose (3″ or 4” diameter)
• Hose insertion guide
• Oval tailpipe adapter 2-1/2″ x 6″
• 1/2″ x 20″ stainless steel clamp
• 1/4″ x 1-1/4″ stainless steel concrete screws

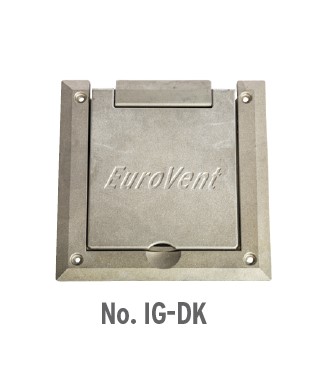

Aluminum Door and Frame

• High-strength cast aluminum
• Supports 5000 lb. concentrated load
• Door is separate from pod – installs with surface mount screws
• Lay-flat design with invisible hinge
• Can rotate to open in any direction – full 180°
• Stainless steel hinge pins
• Low profile – only .51” (13mm) tall

Also sold as a separate replacement kit.

All EuroVent exhaust fans are American made and UL approved for indoor and outdoor applications. They are air and sound performance tested prior to shipment (AMCA-210-85 and 300-85). Their rugged, lightweight and rustproof cast aluminum construction makes them durable and reliable.

VUSF Fans

Direct drive centrifugal backward-inclined utility fans for applications requiring low- to medium-air volume and pressures. The wheel design provides the ability to build pressure without overloading. These fans feature faster startup, are mounted, wired and programmed at factory for lower installment cost, are quick and easy to balance with the bolted construction using all galvanized material.

• Faster startup
• Mounted, wired and programmed at factory for lower installment cost
• Quick and easy to balance
• Bolted construction using all galvanized material

Properly calculated system requirements are needed in order to determine a proper fan type and size. Failure to do so can result in poor system performance and/or premature fan wear. Please consult your EuroVent design engineer for assistance. EuroVent cannot guarantee or warrant the system performance if a non-EuroVent selected fan is used.

EuroVent Exhaust Fan Motors

• Direct drive offers quiet operation and are maintenance-free
• Three-phase motors are wired tri-voltage (208V/230V/460V)
• Single-phase motors are wired dual-voltage (120V/230V)

All EuroVent exhaust fans are American made and UL approved for indoor and outdoor applications. They are air and sound performance tested prior to shipment (AMCA-210-85 and 300-85). Their rugged, lightweight and rustproof cast aluminum construction makes them durable and reliable.

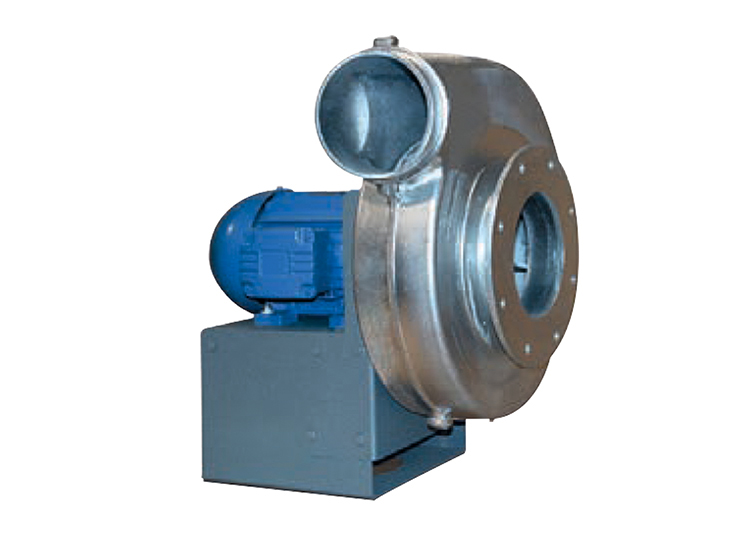

AF Cast Aluminum Pressure Blowers

• High flow
• Corrosion-resistant with aluminum wheels and housings
• Light weight and rugged split cast aluminum housings
• Direct drive and belt driven

Properly calculated system requirements are needed in order to determine a proper fan type and size. Failure to do so can result in poor system performance and/or premature fan wear. Please consult your EuroVent design engineer for assistance. EuroVent cannot guarantee or warrant the system performance if a non-EuroVent selected fan is used.

EuroVent Exhaust Fan Motors

• Direct drive models offer quiet operation and are maintenance-free
• Belt-drive models offer system performance flexibility
• Three-phase motors are wired tri-voltage (208V/230V/460V)
• Single-phase motors are wired dual-voltage (120V/230V)

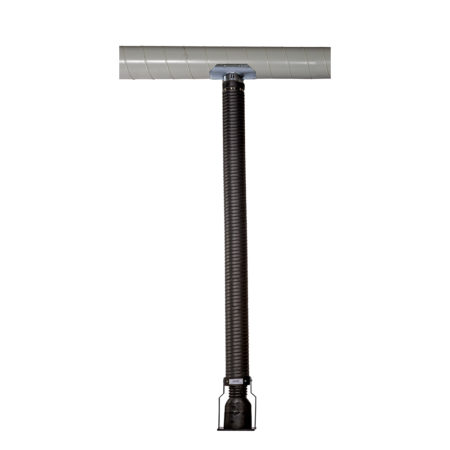

Telescoping drops at fixed locations along the service bays are ideal for facilities with traditional spiral exhaust duct. The telescoping design eliminates winches, ropes and pulleys providing a clean look from bay to bay.

Features:

• Three-piece telescoping exhaust hose retracts when not in use
• Extends to 18’7”, Retracts to 8’2”

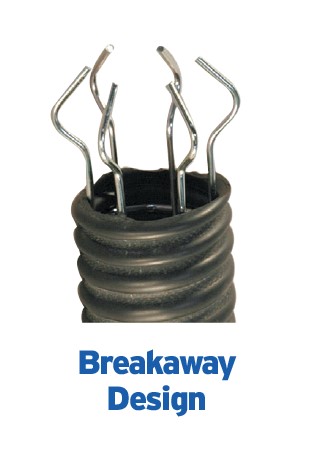

• Innovative break-away design prevents damage to the overhead duct work if accidentally pulled off
• Duct saddle adjusts to various spiral duct sizes
• Swing gate assembly keeps hose retracted when not in use
• Choice of tailpipe adapter – standard (2-1/2” x 6”) or QuickLink 4” x 6” adapter

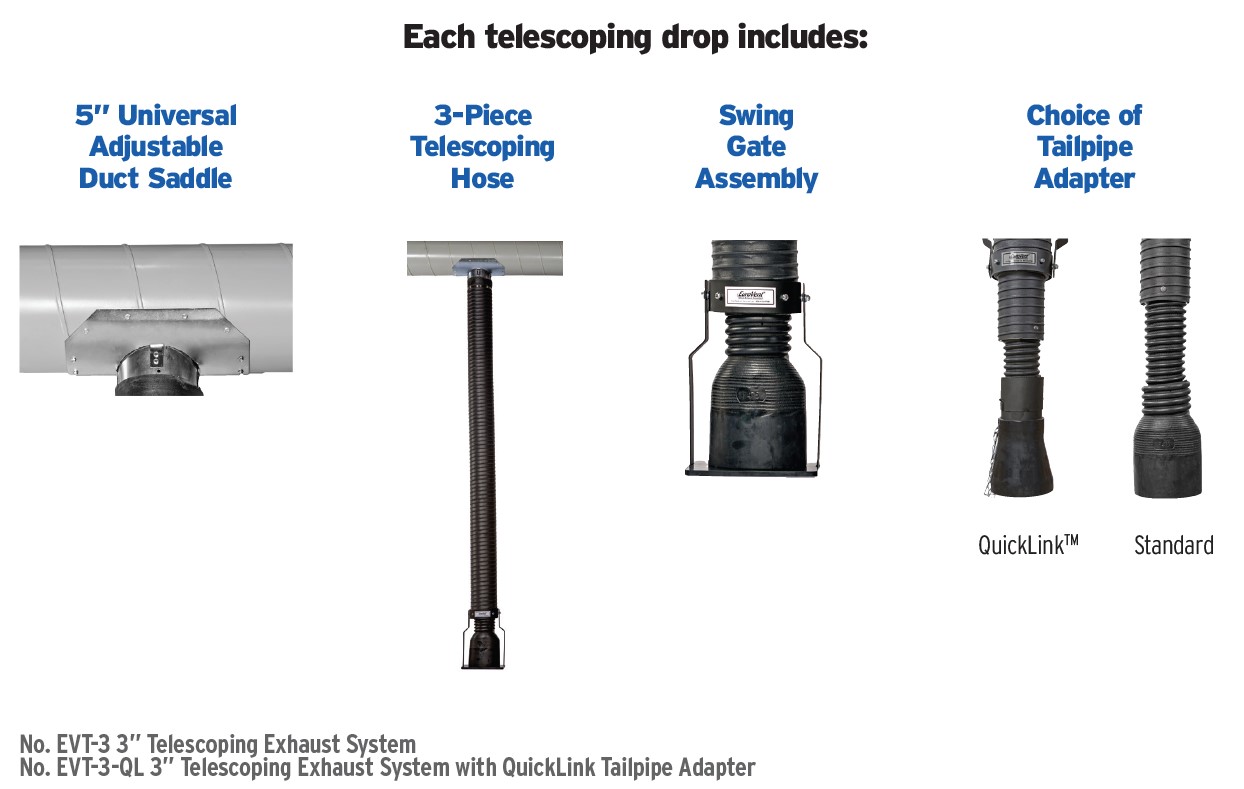

Each telescoping drop includes:

• 5” universal adjustable saddle
• 3-piece telescoping hose
• Swing gate assembly
• Choice of Tailpipe adapter (QuickLink or Standard)

No. EVT-3  3″ Telescoping Exhaust System
No. EVT-3-WL  3″ Telescoping Exhaust System with QuickLink Tailpipe Adapter

An Out-The-Door system is a practical exhaust extraction solution for service facilities with multiple drive-in service bay doors. Out-The-Door systems are perfect for passenger vehicles, light-duty trucks with rear-mounted exhaust pipes, and light-duty/medium-duty diesel vehicles. For an Out-The-Door system to work properly, the distance from the door to the vehicle must be under 25 feet.

System design includes a combination of the following:

• Crushproof Exhaust hose

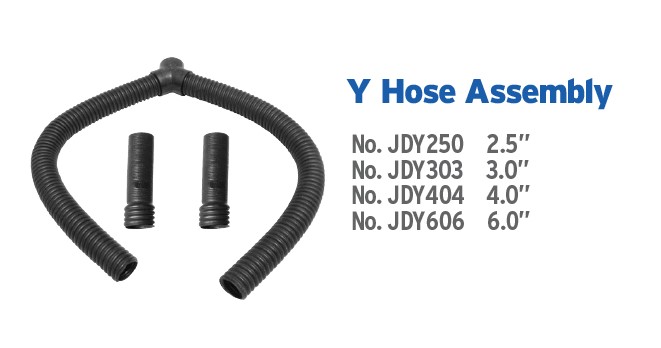

• Y-Hose Assembly

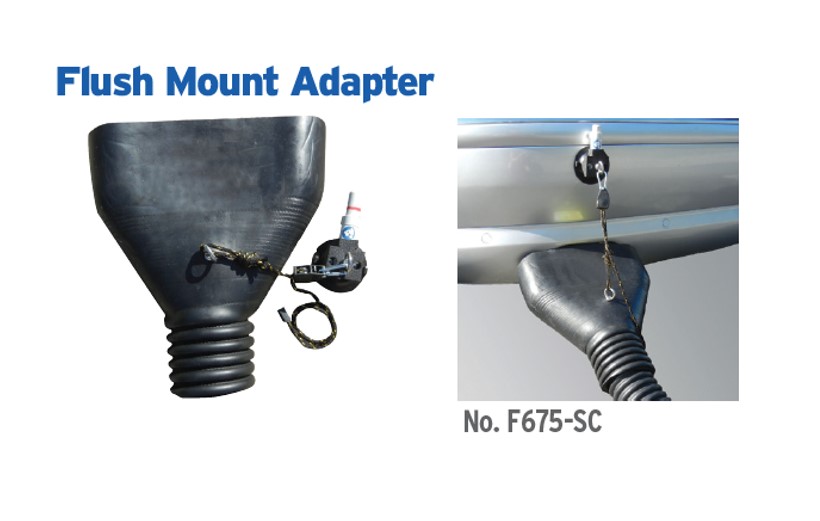

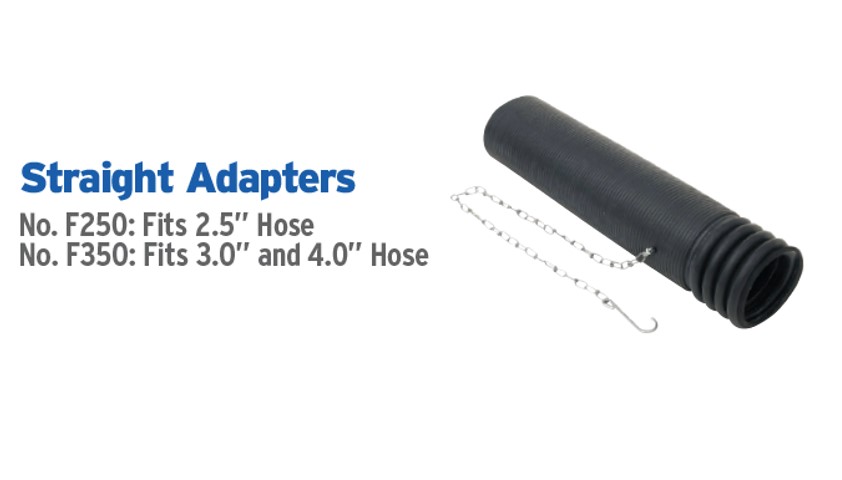

• Adapters

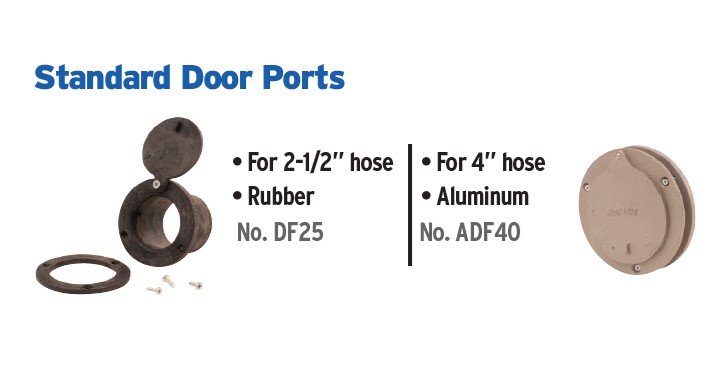

• Standard Door Ports

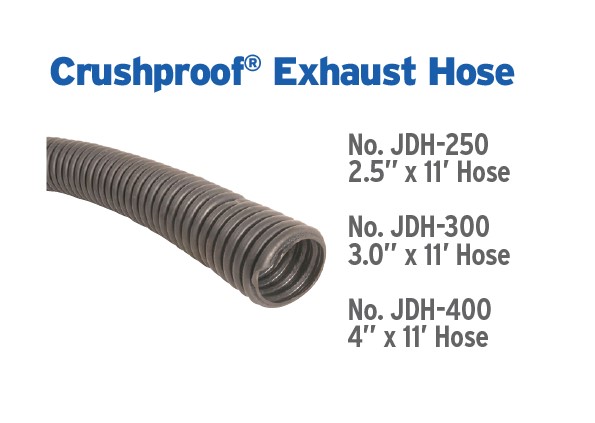

Crushproof Exhaust Hose

Use with smaller passenger vehicles up to SUVs and light-duty trucks. The FlareLok® system connects multiple lengths without needing a splice connector. All hoses are 11 feet long, and withstand exhaust temperatures up to 600°F when used with a proper adapter and fan-assisted system.
